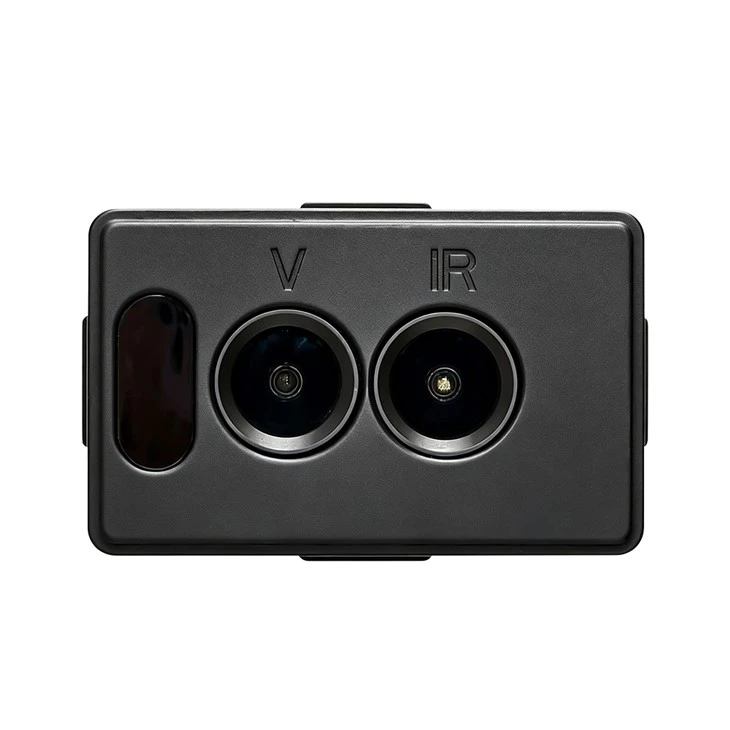

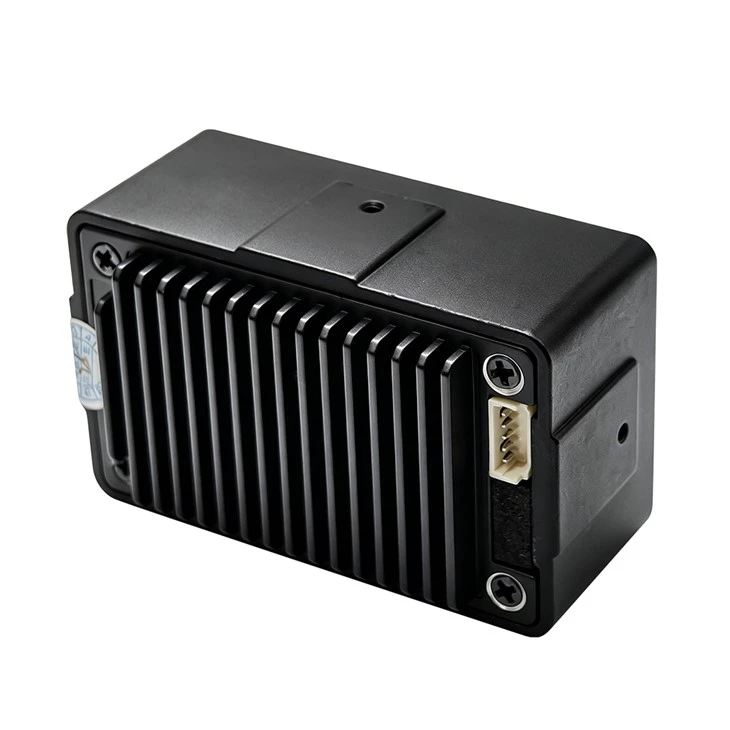

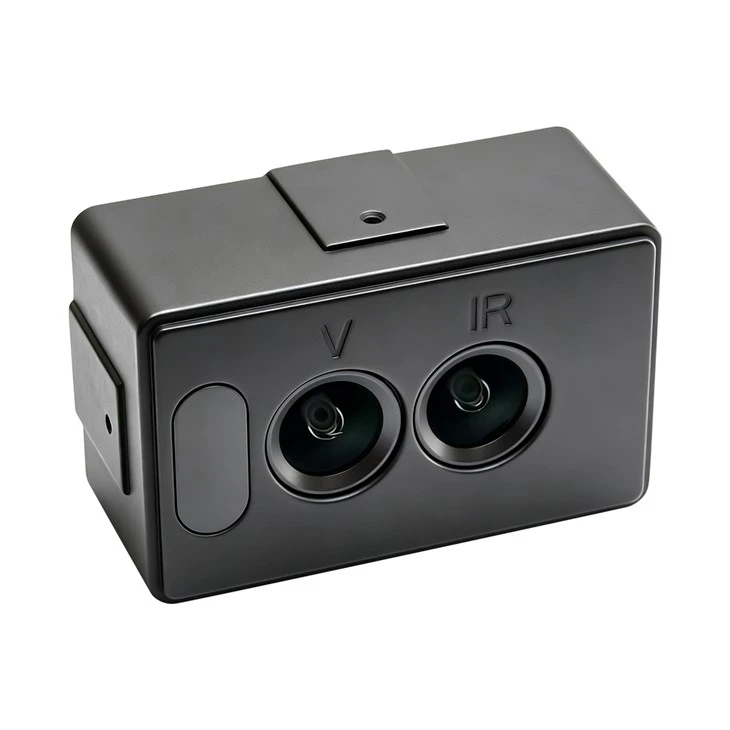

Ikki linzali 5 million keng dinamik diapazonli durbin kamerasi

Signal

5M Ko'rinadigan yorug'lik

Skanerlash tizimi

Progressiv skanerlash

Tasvir sensori

1/2,9 dyuymli CMOS

1/2,5 dyuymli CMOS

Samarali piksellar

1920X1080

2592X1944

Piksel hajmi

2.8μm * 2.8μm

2,2um X 2,2um

Tasvir sensori ma'lumotlarining chiqishi

Xom ma'lumotlar 10 bit

Video chiqishi

MJPG/YuY2

Maksimal kadr tezligi (MJPG)

1920X1080 @30 kadr/s

1280X1024 @30 kadr/s

1280X960 @30 kadr/s

1280X720 @30 kadr/s

1088X800 @30 kadr/s

1024X768 @30 kadr/s

960X720 @30 kadr/s

800X600 @30 kadr/s

640X480 @30 kadr/s

640X360 @30 kadr/s

432X240 @30 kadr/s

352X288 @30 kadr/s

320X240 @30 kadr/s

320X184 @30 kadr/s

176X144 @30 kadr/s

160X120 @30 kadr/s

2592x1944 @20 kadr/s

2048X1536 @20 kadr/s

1920X1080 @25 kadr/s

1600X1200 @25 kadr/s

1280X1024 @25 kadr/s

1280X960 @25 kadr/s

1280X720 @25 kadr/s

1024X768 @25 kadr/s

800X600 @25 kadr/s

640X480 @25 kadr/s

640X360 @30 kadr/s

352X288 @30 kadr/s

320X240 @30 kadr/s

160X120 @30 kadr/s

Maksimal kadr tezligi (YUY2)

1920X1080 @5 kadr/s

1280X1024 @5 kadr/s

1280X960 @5 kadr/s

1280X720 @10 kadr/s

1088X800 @10 kadr/s

1024X768 @10 kadr/s

960X720 @15 kadr/s

800X600 @20 kadr/s

640X480 @20 kadr/s

432X240 @30 kadr/s

352X288 @30 kadr/s

320X240 @30 kadr/s

176X144 @30 kadr/s

160X120 @30 kadr/s

2592X1944 @3 kadr/s

2048X1536 @3 kadr/s

1920X1080 @3 kadr/s

1600X1200 @5 kadr/s

1280X1024 @5 kadr/s

1280X960 @9 kadr/s

1280X720 @10 kadr/s

1024X768 @15 kadr/s

800X600 @20 kadr/s

640X480 @25 kadr/s

640X360 @30 kadr/s

352X288 @30 kadr/s

320X240 @30 kadr/s

160X120 @30 kadr/s

SNR Maks

38 dB dan katta yoki unga teng

39dB dan katta yoki unga teng

Dinamik diapazon

81dB dan katta yoki unga teng

85 dB dan katta yoki unga teng

Min. Yoritish

0.01LUX, F1.2

0.1LUX, F1.2

Raqamli interfeys

5-pinli 1,25 mm USB2.0

5-pinli 1,25 mm USB2.0

Transfer tariflari

480 Mb/s

Quvvat talablari

5V

Quvvat iste'moli (LED YO'Q)

0.6W

1W

Quvvat iste'moli (LED)

1.5W

IR-LED to'lqin uzunligi

850 nm

O'lchamlari (PCBA) mm

28x48

Ishlash harorati (daraja)

-10 ~ 50 daraja

Saqlash harorati (daraja)

-40 ~ 80 daraja

Ob'ektiv o'rnatish

M12(f=2,8 mm)

Ob'ektiv ko'rinish

M12/92 daraja

M12/92 daraja

Vizual burchak

Gorizontal ko'rish burchagi 75 daraja ± 5 foiz

Vertikal ko'rish burchagi 55 daraja ± 5 foiz

OS

Windows XP/vista/seven/8.1/windows10 32bit/64bit/Android4.0 plus /Mac linux2.6.2 (UVC bilan birga)

USB ULANISH

1

5V (maksimal 500mA)

2

DM

3

Soʻzni oʻqing

4

GND

5

YER
